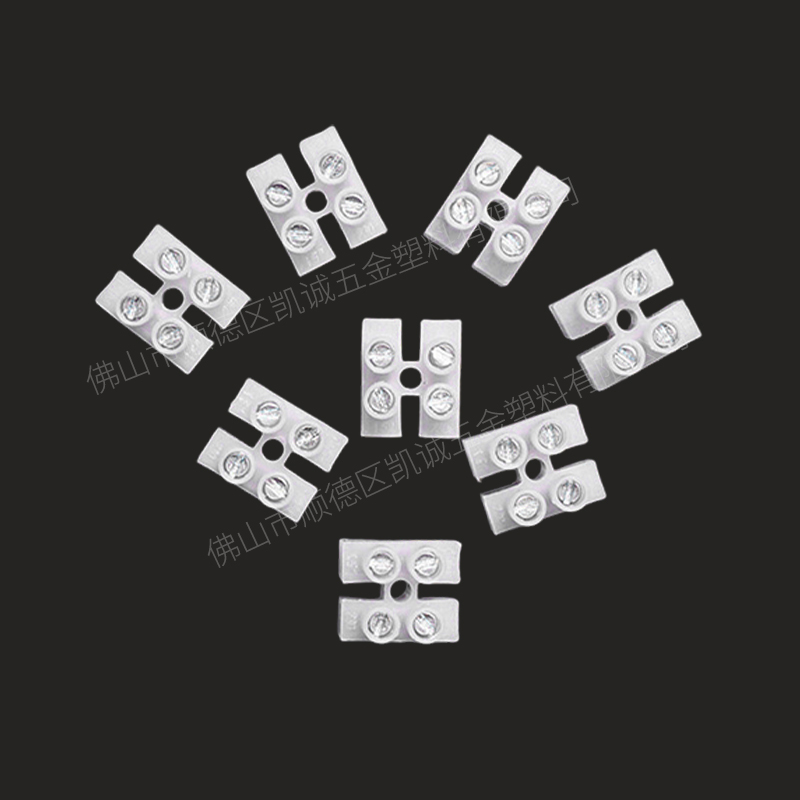

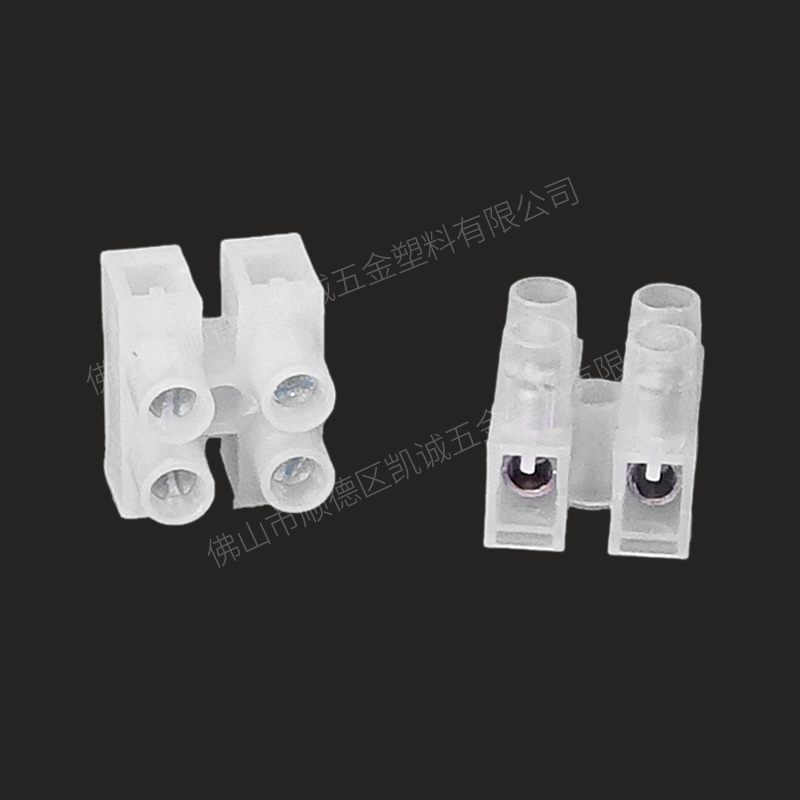

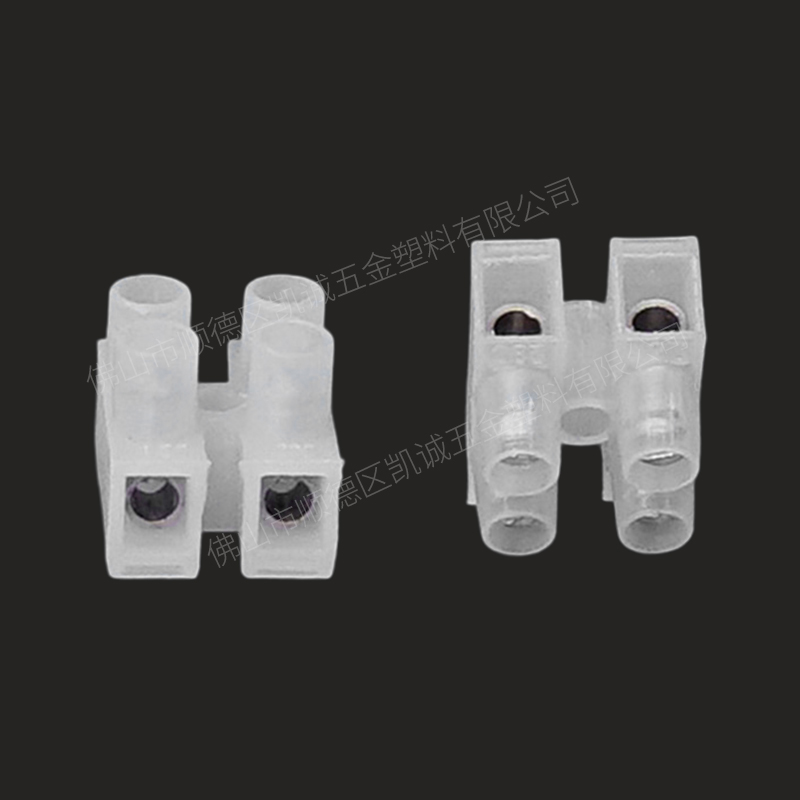

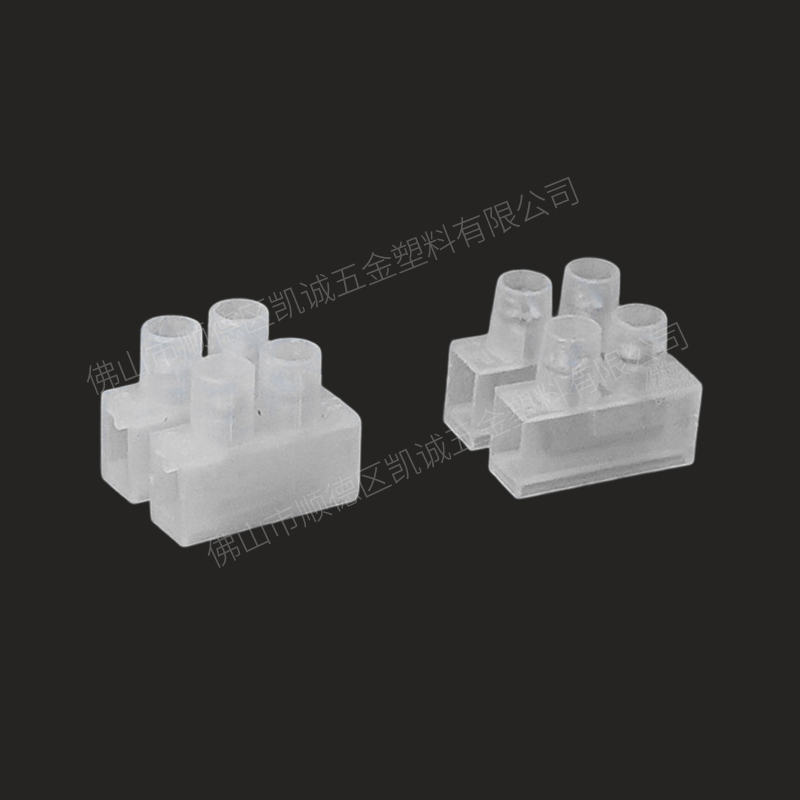

Terminal Blocks PA8-2-H
PA8-2-H
Electrical parameters
Rated voltage:450V
Rated current:17.5A
Fire rating:UL 94V-2
Connection capacity
Solid line: 0.5-2.5mm²
Strip length:7mm
Connection:screw locking
Screw Size:M2.6
Materials
Plastic:Nylon/PP
Hardware:Zinc alloy/Copper alloy/Electroplated steel
